WANDA 450-FLAT+CT ESP CABLE
- DESCRIPTION
BARE SOLID COPPER CONDUCTOR, EPDM INSULATION, LEAD SHEATH, FIBER TAPE COMPLETELY COVERED THE SHEATH, SS MATERIAL CAPILLARY TUBE, GALVANIZED STEEL (SS OR MONEL)ARMOR - STANDARD
IEEE1018, API RP11S5, API RP 11S6 - PACKING
STEEL REELS, WOODEN COVER OUTSIDE, CABLE LENGTH TO MEET CUSTOMER'S REQUIREMENTS.
CABLE SPECIFICATION AND PARAMETERS
|
NO. |
VOLTAGE RATING(KV) |
CONDUCTOR |
NOMNAL CONDUCTOR OD |
INSULATION OD |
LEAD SHEATH OD |
CT |
ARMOR |
MAX CABLE DIMENSION |
NOMNAL WEIGHT(APPROXIMATE) |
|||||||
|
AWG |
mm2 |
inch |
mm |
inch |
mm |
inch |
mm |
ID inch |
OD inch |
inch |
mm |
Lbs/ft |
Kg/m |
|||
|
1 |
5KV |
4 |
20 |
0.20 |
5.19 |
0.373 |
9.48 |
0.441 |
11.20 |
0.049 |
0.375 |
GAL. STEEL TAPE |
0.592*1.881 |
15.0*47.9 |
1.8 |
2.7 |
|
2 |
5KV |
2 |
33 |
0.26 |
6.54 |
0.427 |
10.80 |
0.494 |
12.60 |
GAL. STEEL TAPE |
0.646*2.041 |
16.4*51.9 |
2.2 |
3.3 |
||
|
3 |
5KV |
1 |
42 |
0.29 |
7.34 |
0.458 |
11.64 |
0.526 |
13.40 |
GAL. STEEL TAPE |
0.677*1.761 |
17.2*54.3 |
2.4 |
3.6 |
||
WANDA 450-FLAT+CT ESP CABLE SPECIFICATION

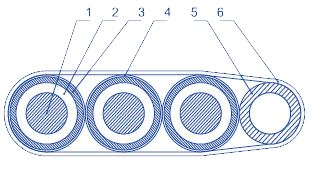

CONSTRUCTION: FLAT/SOL BC/2AWG/5KV/EPDM INSULATION/LEAD SHEATH/FIBER TAPE/3/8''/GALV./450°F※CONDUCTOR CAN BE TINNED OR BARE
1、 CONDUCTOR: 2AWG SOLID BC MAX. DIA=0.26'' 6.54mm
２、 INSULATION: EPDM, HIGH DIELECRIC STRENGTH, 5KV MAX. DIA=0.427'' 10.80mm
0.075''MINIMUM AVG WALL THICKNESS
0.067''MINIMUM AVG WALL THICKNESS AT ANY POINT
3、 LEAD SHEATH: LEAD, FATIGUE RESISTANT, MEETS ASTM B-29
0.030''MINIMUM AVG WALL THICKNESS
0.024'' MINIMUM AVG WALL THICKNESS AT ANY POINT
MAX. DIAMETER OVER LEAD SHEATH DIA=0.494'' 12.6mm
4、 TAPES: PROTECTIVE FIBER TAPE
TO PROTECT THE LEAD SHEATH FROM MECHANICAL ATTACK AND TO
PROVIDE ADDITIONAL CONTAINMENT TO THE CABLE PHASES
BEDDING TAPE SHALL BE TIGHTLY WRAPPED TO PROTECT LEAD SHEATH
DURING THE ARMORING OPERATION. PROVIDES 100% PROTECTION TO
THE LEAD SHEATH
5、 ARMOR: GALVANIZED STEEL ARMOR, 0.02'' THICKNESS
6、 ARMOR: GALVANIZED STEEL ARMOR, 0.02'' THICKNESS
MAX. DIAMETER OVER ARMOR DIA=0.646'' * 2.041 16.4mm * 51.9mm
TEMPERATURE: TEMPERATURE RATING 450-LEAD SHEATH -40℃ TO 232℃
-40℉ TO 450℉
TESTED: IEEE1018,API RP 11S5, API RP 11S6 AND WANDA SPECIFICATIONS
CONDUCTOR RESISTANCE=MAX. 0.566Ω/KM@20℃
INSULATION RESISTANCE=899MΩ.KM@15.6℃
DC TEST(5MIN.@35KV)
MAX. DC LEAKAGE=0.100 µAmp/kft/KV
