NO.	VOLTAGE RATING(KV)	CONDUCTOR		NOMNAL CONDUCTOR OD		INSULATION OD		LEAD SHEATH OD		ARMOR	MAX CABLE DIMENSION		NOMNAL WEIGHT(APPROXIMATE)
		AWG	mm2	inch	mm	inch	mm	inch	mm		inch	mm	Lbs/ft	Kg/m
1	3KV	6	13.2	0.16	4.12	0.24	5.99	0.29	7.37	GAL. STEEL TAPE	0.378*0.969	9.6*24.61	0.82	1.22
2	4KV	4	20	0.20	5.19	0.316	8.03	0.39	9.86	GAL. STEEL TAPE	0.510*1.260	12.95*32	1.28	1.90
3	4KV	6	13.2	0.16	4.12	0.276	7.01	0.35	8.79	GAL. STEEL TAPE	0.468*1.134	11.89*28.8	1.03	1.53

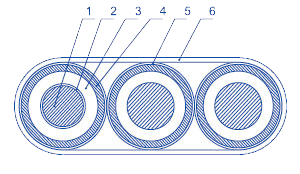

CONSTRUCTION:   FLAT/SOL BARE COPPER/6 AWG/3KV/PI+EPDM/LEAD SHEATH/FIBER TAPE/GALV./400°F

1、   CONDUCTOR:   6AWG SOLID BC                                 MAX.   DIA=0.162''     4.12mm

2、   POLYIMIDE FILE:   AS FIRST LAYER OF INSULATION, WORK TOGETHER WITH
                                            EPDM TO PROVIDE BETTER INSULATION PROPERTY

3、   INSULATION:   PI+EPDM, HIGH DIELECRIC STRENGTH, 5KV             MAX.     DIA=0.236''    5.99mm
                                      0.033''MINIMUM AVG WALL THICKNESS
                                      0.030''MINIMUM AVG WALL THICKNESS AT ANY POINT
                                      POLYIMIDE FILE TIGHLY WRAPPED OVER THE EPDM INSULATION

4、   LEAD SHEATH:   LEAD, FATIGUE RESISTANT, MEETS ASTM B-29
                                         0.025''MINIMUM AVG WALL THICKNESS
                                         0.019'' MINIMUM AVG WALL THICKNESS AT ANY POINT
                                         MAX DIAMETER OVER LEAD SHEATH                                  DIA=0.290''        7.37mm

5、   TAPES:   PROTECTIVE FIBER TAPE
                          TO PROTECT THE LEAD SHEATH FROM MECHANICAL ATTACK AND TO
                           PROVIDE ADDITIONAL CONTAINMENT TO THE CABLE PHASES
                           BEDDING TAPE SHALL BE TIGHTLY WRAPPED TO PROTECT LEAD SHEATH
                           DURING THE ARMORING OPERATION. PROVIDES 100% PROTECTION TO
                           THE LEAD SHEATH

6、   ARMOR:   GALVANIZED STEEL ARMOR, 0.015'' THICKNESS
                             MAX. DIAMETER OVER ARMOR                               0.378'' * 0.969''    9.6mm * 24.61mm

TEMPERATURE:   TEMPERATURE RATING 450-LEAD SHEATH              -40℃ TO 232℃
                                                                                                                                    -40℉ TO 450℉

TESTED:   IEEE1018,API RP 11S5, API RP 11S6 AND WANDA SPECIFICATIONS
                   CONDUCTOR RESISTANCE=MAX. 1.39Ω/KM@20℃
                    INSULATION RESISTANCE=820Ω.KM@15.6℃
                    DC TEST(5MIN.@35KV)
                    MAX. DC LEAKAGE=0.100 µAmp/kft/KV
